165° HETTICH Sensys wide angle hinge, with zero protrusion, without integrated Silent System (NON soft closing) - HTT-9099600 / HTT-9099601 / HTT-9099623
Specification
Box Quantity = 50pcs
- Plates must be ordered separately
- Sensys wide angle hinge, with zero protrusion
- Without Silent System, with self closing feature (Sensys 8657)
- Quality classification under EN 15570, Level 3
- Opening angle 165°
- For door thickness 15 - 32 mm
- Door mounting option overlay
- Drilling pattern TH 52 x 5,5 mm ; TB 45 x 9,5 mm
- Cup depth 11.6 mm
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- Steel / die-cast zinc nickel plated
Types of Hinges
165° / Screw on / Full overlay = HTT-9099600

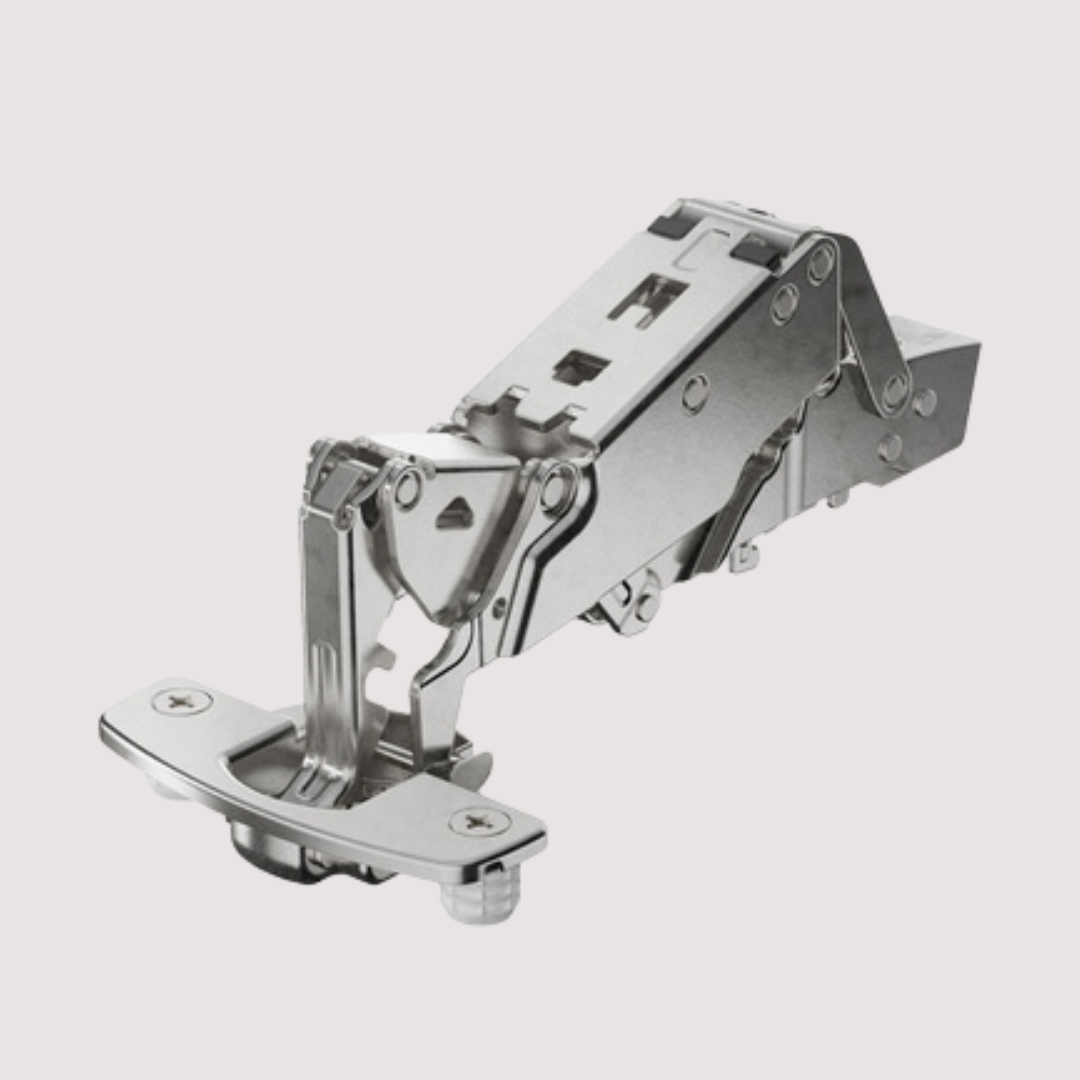

165° / Press In TH drilling pattern / Full overlay = HTT-9099601

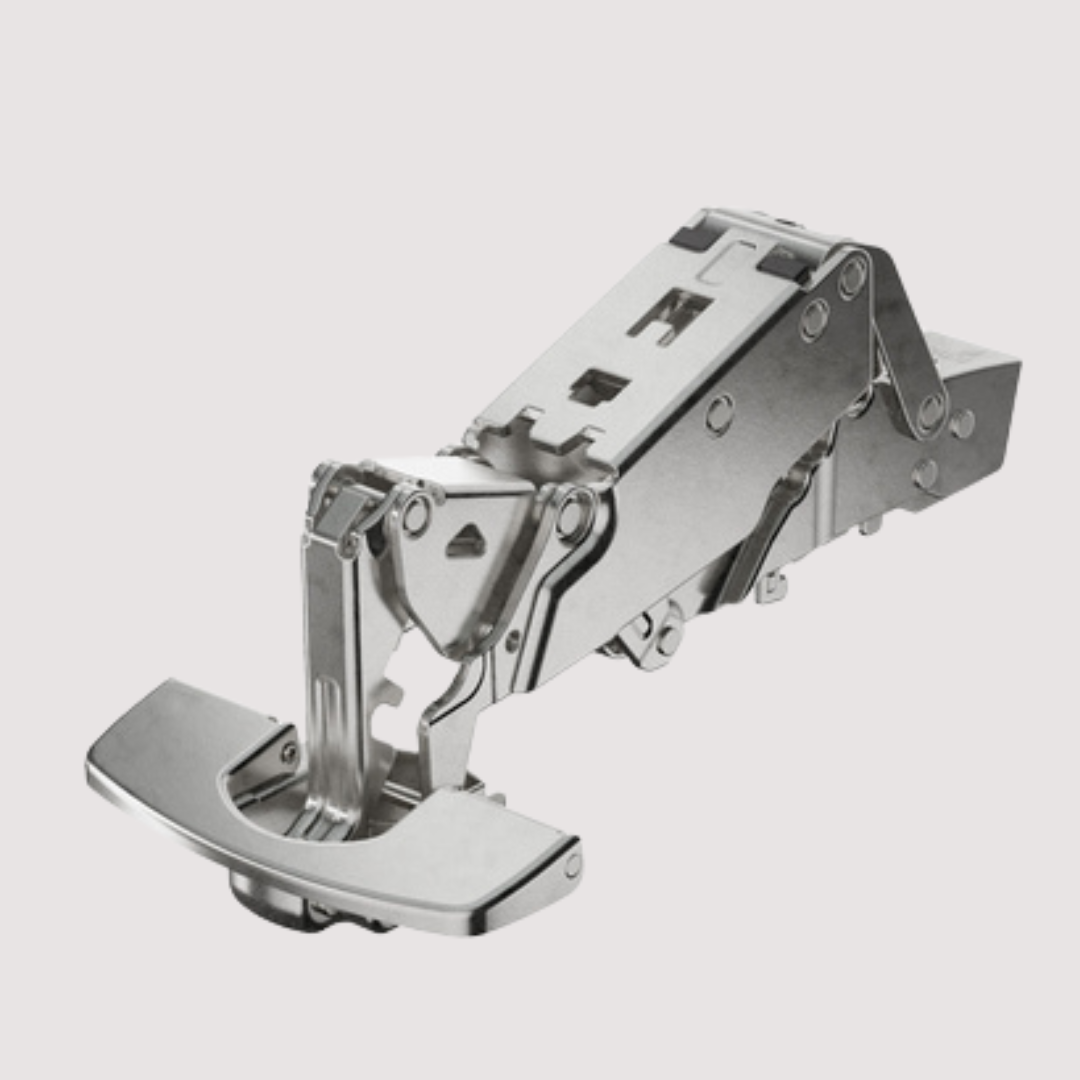

165° / Fix Fast TB drilling pattern / Full overlay = HTT-9099623
